Hydraulic Fork Stackers with Foot Pedal Lift
View Options

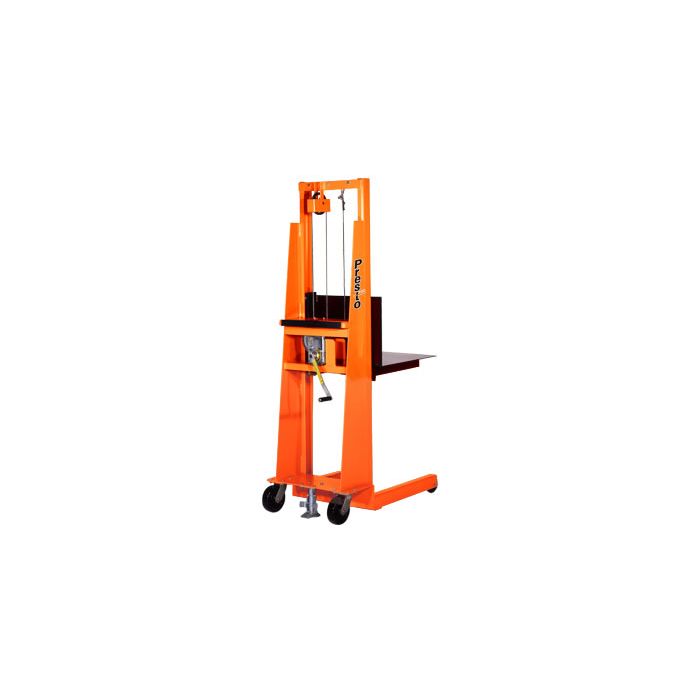

Mechanical Hand Crank Stacker
/ ea.
Load Capacity
MHCS-54
Load Capacity - 750 #
Raised Height - 54"
Lowered Height - 5"
Dimensions (W x D x H) - 24" X 37" X 71"
Inner Dimension / Outer Dimension - 19" / 24"
Wheel Diameter Front / Rear - 4" / 6"
MHCS-60
Load Capacity - 750 #
Raised Height - 60"
Lowered Height - 5"
Dimensions (W x D x H) - 24" X 37" X 77"
Inner Dimension / Outer Dimension - 19" / 24"
Wheel Diameter Front / Rear - 4" / 6"
MHCS-78
Load Capacity - 750 #
Raised Height - 78"
Lowered Height - 5"
Dimensions (W x D x H) - 24" X 37" X 95"
Inner Dimension / Outer Dimension - 19" / 24"
Wheel Diameter Front / Rear - 4" / 6"
Load Capacity
MHCSF-56
Load Capacity - 750 #
Raised Height - 56"
Lowered Height - 1"
Dimensions (W x D x H) - 31 1/2" X 41" X 77"
Inner Dimension / Outer Dimension - 26" / 31"
Wheel Diameter Front / Rear - 4" / 6"
MHCSF-74
Load Capacity - 750 #
Raised Height - 74"
Lowered Height - 1"
Dimensions (W x D x H) - 31 1/2" X 41" X 95"
Inner Dimension / Outer Dimension - 26" / 31"
Wheel Diameter Front / Rear - 4" / 6"
-
Product Details
- Industrial and Non Industrial Uses
- Consists of Heavy Duty Floor Locks for Stability
- Choose Between the Platform or Adjustable Fork Version
- 30 Inch long Forks are Adjustable
-
Information
With a 15 inch load center capacity this piece of equipment is ideal for several industrial and non industrial uses. We include a safety ratchet and pawl hold for you to load at your desired height. The phenolic wheels will keep your floors free from scratches. The hand crank mechanical stacker consists of a spur gear winding drum, friction type clutch, and a 1/4 inch plow steel wire rope.
Browse All Products
Platform
Adjustable Forks
Platform
| PRODUCT ID# | Load Capacity | Raised Height | Lowered Height | Dimensions (W x D x H) | Inner Dimension / Outer Dimension | Wheel Diameter Front / Rear | Price 1-3 | Price 4+ | QTY |
|---|---|---|---|---|---|---|---|---|---|
Adjustable Forks
| PRODUCT ID# | Load Capacity | Raised Height | Lowered Height | Dimensions (W x D x H) | Inner Dimension / Outer Dimension | Wheel Diameter Front / Rear | Price 1-3 | Price 4+ | QTY |
|---|---|---|---|---|---|---|---|---|---|
