Electric Hydraulic Corner Tilter
View Options

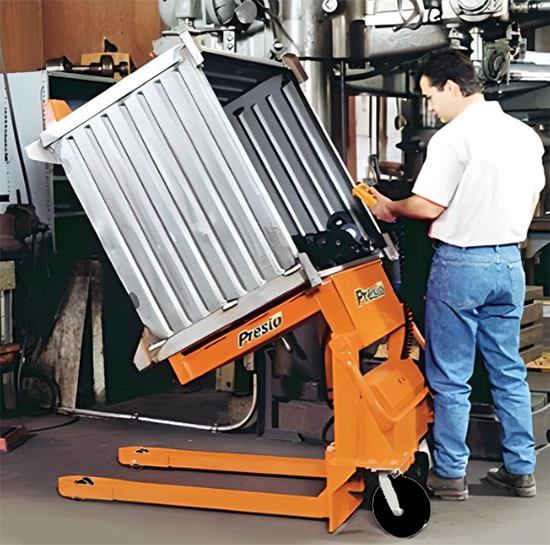

Portable Container Tilters
/ ea.
Overall W-L
HPTS42-20
Overall W-L - 48-62"
Wt. (lbs.) - 765
- 0
Lowered Hgt. - 3-1/2"
Fork Length - 42"
Fork O.D. - 26-1/2"
Raise Time - 26 sec.
Cap. (lbs.) - 2000
HPTS42-40
Overall W-L - 48-62"
Wt. (lbs.) - 785
- 0
Lowered Hgt. - 3-1/2"
Fork Length - 42"
Fork O.D. - 26-1/2"
Raise Time - 30 sec.
Cap. (lbs.) - 4000
Overall W-L
HPTS50-20
Overall W-L - 56-62"
Wt. (lbs.) - 780
- 0
Lowered Hgt. - 3-1/2"
Fork Length - 42"
Fork O.D. - 26-1/2"
Raise Time - 26 sec.
Cap. (lbs.) - 2000
HPTS50-40
Overall W-L - 56-62"
Wt. (lbs.) - 800
- 0
Lowered Hgt. - 3-1/2"
Fork Length - 42"
Fork O.D. - 26-1/2"
Raise Time - 30 sec.
Cap. (lbs.) - 4000
Overall W-L
HPT-20
Overall W-L - 34-62"
Wt. (lbs.) - 725
- 0
Lowered Hgt. - 3-1/2"
Fork Length - 42"
Fork O.D. - 26-1/2"
Raise Time - 26 sec.
Cap. (lbs.) - 2000
HPT-40
Overall W-L - 34-62"
Wt. (lbs.) - 740
- 0
Lowered Hgt. - 3-1/2"
Fork Length - 42"
Fork O.D. - 26-1/2"
Raise Time - 30 sec.
Cap. (lbs.) - 4000
-
Product Details
- Straddle models are designed to lift and tilt double faced pallets and other containers standard tilters cannot handle.
- Non-straddle models for wire baskets and large tote boxes
- Push Handle Lowers When in Use
- 12V Maintenance Free Battery
Browse All Products
42" I.D. Straddle
50" I.D. Straddle
Standard Non-Straddle
42" I.D. Straddle
| PRODUCT ID# | Overall W-L | Wt. (lbs.) | Lowered Hgt. | Fork Length | Fork O.D. | Raise Time | Cap. (lbs.) | Price 1-3 | Price 4+ | QTY |
|---|---|---|---|---|---|---|---|---|---|---|
50" I.D. Straddle
| PRODUCT ID# | Overall W-L | Wt. (lbs.) | Lowered Hgt. | Fork Length | Fork O.D. | Raise Time | Cap. (lbs.) | Price 1-3 | Price 4+ | QTY |
|---|---|---|---|---|---|---|---|---|---|---|
Standard Non-Straddle
| PRODUCT ID# | Overall W-L | Wt. (lbs.) | Lowered Hgt. | Fork Length | Fork O.D. | Raise Time | Cap. (lbs.) | Price 1-3 | Price 4+ | QTY |
|---|---|---|---|---|---|---|---|---|---|---|
