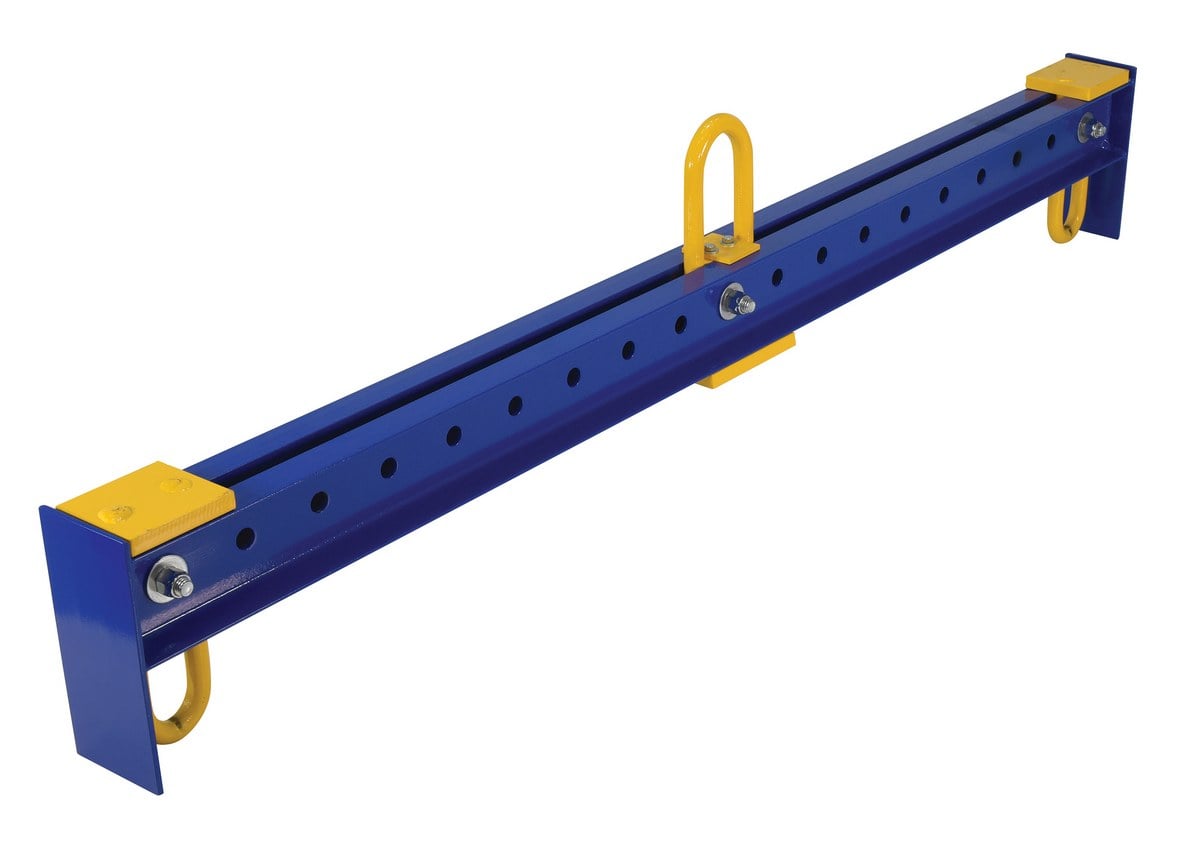

Adjustable Spreader Beams
View Options
Adjustable Spreader Beams
/ ea.
Uniform Capacity
HSBM-25
Uniform Capacity - 2,500 #
Length - 78"
Headroom - 14-3/4"
Minimum Spread - 8"
Maximum Spread - 6'
Usable Upper Bail Width/Height - 2-1/2 x 4-1/2"
Usable Lower Bail Width/Height - 1-1/2 x 4-1/2"
Upper/Lower Bail Thickness - 3/4"
C-Channel Height - 5"
Overall Width - 5"
Overall Height - 16-1/2"
HSBM-40
Uniform Capacity - 4,000 #
Length - 78"
Headroom - 14-3/4"
Minimum Spread - 8"
Maximum Spread - 6'
Usable Upper Bail Width/Height - 3 x 5-1/2"
Usable Lower Bail Width/Height - 2 x 4"
Upper/Lower Bail Thickness - 1"
C-Channel Height - 5"
Overall Width - 5"
Overall Height - 17-1/4"
HSBM-80
Uniform Capacity - 8,000 #
Length - 104-3/4"
Headroom - 20-3/4"
Minimum Spread - 8"
Maximum Spread - 8'
Usable Upper Bail Width/Height - 4 x 6-3/4"
Usable Lower Bail Width/Height - 3 x 5-1/4"
Upper/Lower Bail Thickness - 1-1/4" ; 1"
C-Channel Height - 8"
Overall Width - 6"
Overall Height - 24-1/2"
-
Product Details
- Safely pick up uneven loads and keep them level
- Includes Two Lower Bail and One Upper Bail
- Baked in Powder Coat Finish for Added Toughness
- Meets ASME standards
- Adjust bails in 4" increments
- Bails slide between two 5" high C-Channels
Browse All Products
Adjustable Spreader Beams
Adjustable Spreader Beams
| PRODUCT ID# | Uniform Capacity | Length | Headroom | Minimum Spread | Maximum Spread | Usable Upper Bail Width/Height | Usable Lower Bail Width/Height | Upper/Lower Bail Thickness | C-Channel Height | Overall Width | Overall Height | Price 1-3 | Price 4+ | QTY |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
