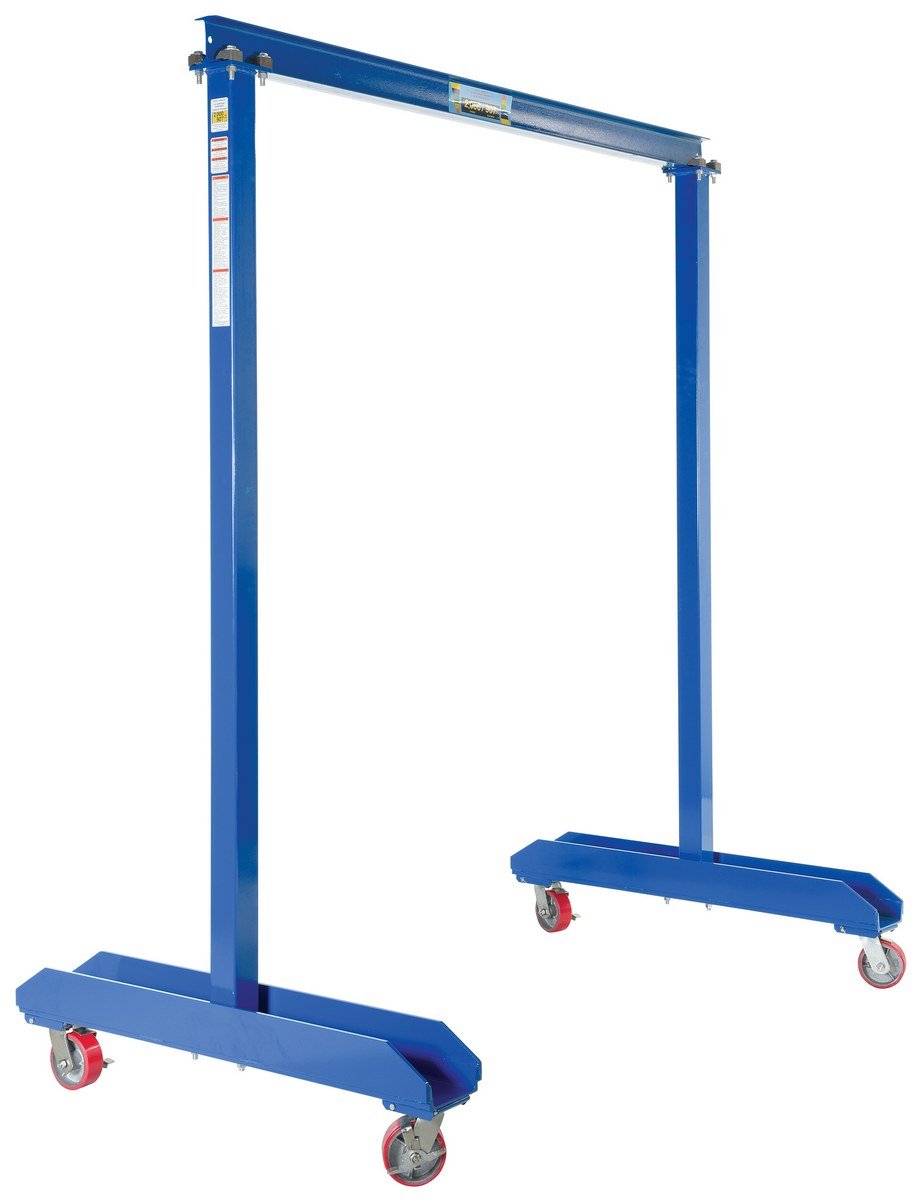

Work Area Portable Gantry
/ ea.
Capacity (lbs.)
HFPG-3
Capacity (lbs.) - 300
Under I-Beam to Ground Length - 90
Assembled Size - 47.75"W x 80.75"L x 94"H
I-Beam (Flange Width x Height) (in.) - 2-11/16 x 4
Base Width (in.) - 47-3/4
Overall I-Beam length (in.) - 79-3/4
I-Beam Usable length (in.) - 69-3/4
Straddle Length (in.) - 69
Caster Quantity/Diameter/Width (in.) - (4) 5x2
Caster Material - Poly-on-Steel
Caster Type - Swivel with Brake
HFPG-6
Capacity (lbs.) - 600
Under I-Beam to Ground Length - 90
Assembled Size - 47.75"W x 80.75"L x 94"H
I-Beam (Flange Width x Height) (in.) - 2-11/16 x 4
Base Width (in.) - 47-3/4
Overall I-Beam length (in.) - 79-3/4
I-Beam Usable length (in.) - 69-3/4
Straddle Length (in.) - 69
Caster Quantity/Diameter/Width (in.) - (4) 5x2
Caster Material - Poly-on-Steel
Caster Type - Swivel with Brake
HFPG-10
Capacity (lbs.) - 1000
Under I-Beam to Ground Length - 90
Assembled Size - 47.75"W x 81.5"L x 94"H
I-Beam (Flange Width x Height) (in.) - 2-11/16 x 4
Base Width (in.) - 47-3/4
Overall I-Beam length (in.) - 79-3/4
I-Beam Usable length (in.) - 69-3/4
Straddle Length (in.) - 68
Caster Quantity/Diameter/Width (in.) - (4) 5x2
Caster Material - Poly-on-Steel
Caster Type - Swivel with Brake
HFPG-20
Capacity (lbs.) - 2000
Under I-Beam to Ground Length - 90
Assembled Size - 47.75"W x 80.5"L x 94"H
I-Beam (Flange Width x Height) (in.) - 2-11/16 x 4
Base Width (in.) - 47-3/4
Overall I-Beam length (in.) - 79-3/4
I-Beam Usable length (in.) - 67-3/4
Straddle Length (in.) - 67
Caster Quantity/Diameter/Width (in.) - (4) 5x2
Caster Material - Poly-on-Steel
Caster Type - Swivel with Brake
-
Product Details
- Maximize your material handling by implementing this fully portable steel gantry.
- Distribute materials from one work cell to another or utilize in palletizing of products.
- Do not move when loaded
- Bolt together installation makes for an easy assembly
