Hydraulic Crate Dumper
View Options

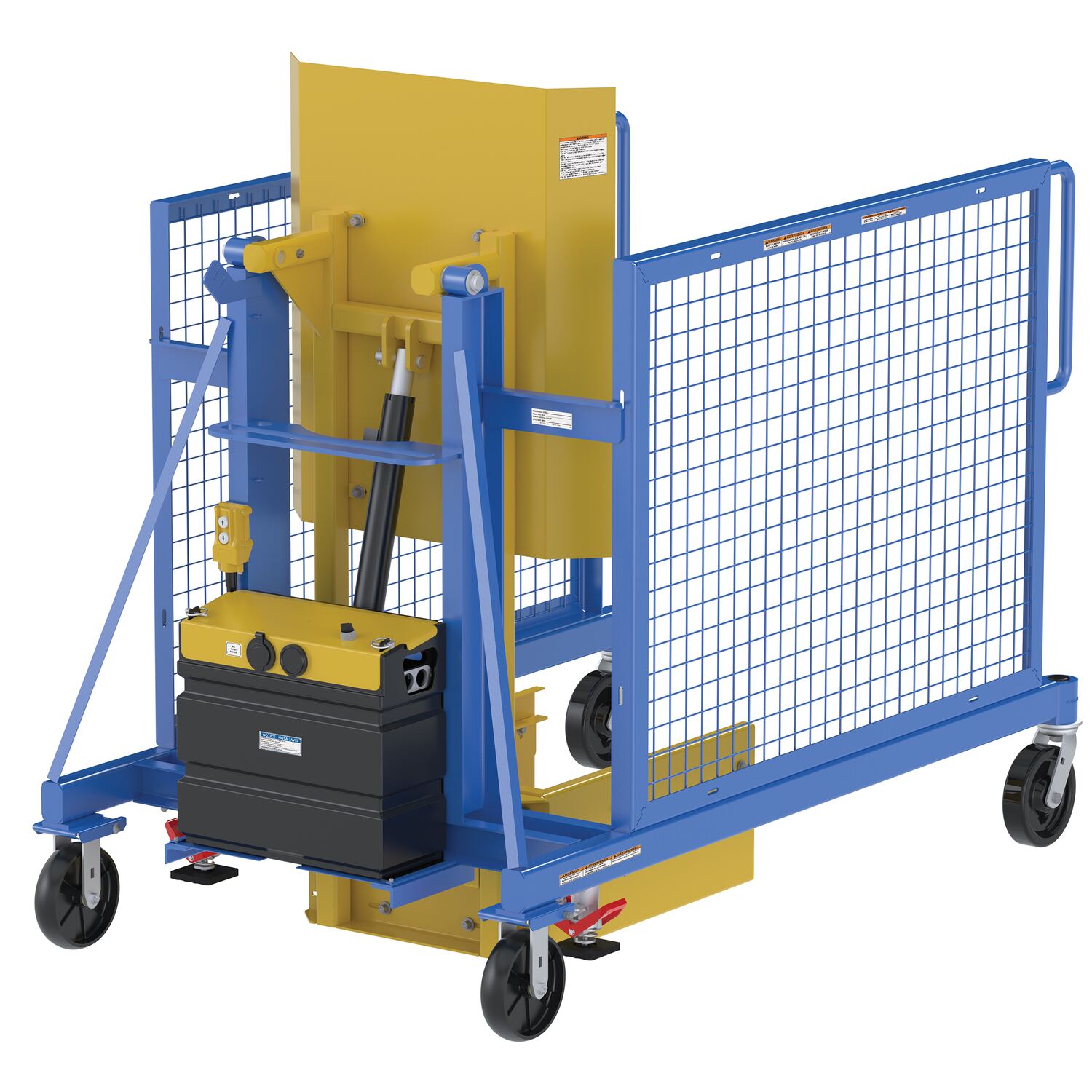

Hydraulic Trash Can Dumpers
/ ea.
Assembled Size
TCD-M-48-AC
Assembled Size - 45.25"W x 75.625"L x 64.6875"H
Uniform Capacity - 400 #
Maximum Dump Height - 48-11/16"
Maximum Dump Angle Degree - 135
Usable Chute Width Min/Max - 20"/27"
Overall Rotated Height - 113-13/16"
Operation/HP - 115V AC / Phase 1 | 2 HP
TCD-M-60-AC
Assembled Size - 45.25"W x 75.625"L x 77.5625"H
Uniform Capacity - 400 #
Maximum Dump Height - 60-3/8"
Maximum Dump Angle Degree - 135
Usable Chute Width Min/Max - 20" / 27"
Overall Rotated Height - 134-11/16"
Operation/HP - 115V AC / Phase 1 | 2 HP
TCD-M-72-AC
Assembled Size - 45.25"W x 87.625"L x 89.5625"H
Uniform Capacity - 400 #
Maximum Dump Height - 72-3/8"
Maximum Dump Angle Degree - 135
Usable Chute Width Min/Max - 20" / 27"
Overall Rotated Height - 155-1/8"
Operation/HP - 115V AC / Phase 1 | 2 HP
Assembled Size
TCD-M-48-DC
Assembled Size - 45.25"W x 75.625"L x 64.6875"H
Uniform Capacity - 400 #
Maximum Dump Height - 48-11/16"
Maximum Dump Angle Degree - 135
Usable Chute Width Min/Max - 20" / 27"
Overall Rotated Height - 113-13/16"
Operation/HP - 12V DC | 2
TCD-M-48-DC
Assembled Size - 45.25"W x 75.625"L x 64.6875"H
Uniform Capacity - 400 #
Maximum Dump Height - 48-11/16"
Maximum Dump Angle Degree - 135
Usable Chute Width Min/Max - 20" / 27"
Overall Rotated Height - 113-13/16"
Operation/HP - 12V DC | 2 HP
TCD-M-72-DC
Assembled Size - 45.25"W x 87.625"L x 89.5625"H
Uniform Capacity - 400 #
Maximum Dump Height - 72-3/8"
Maximum Dump Angle Degree - 135
Usable Chute Width Min/Max - 20" / 27"
Overall Rotated Height - 155-1/8"
Operation/HP - 12V DC | 2 HP
-
Product Details
- One person can easily dump contents of trash cans
- DC powered units includes (1) 12V battery and on-board battery charger, batter charge indicator gauge are standard
- Heavy-duty steel construction with 8" X 2" glass-filled casters
- Two adjustable floor locks included
- Maximum dump angle is 135 degrees
- Caster design makes portability convenient
