Standing Rider Fork Lift
View Options

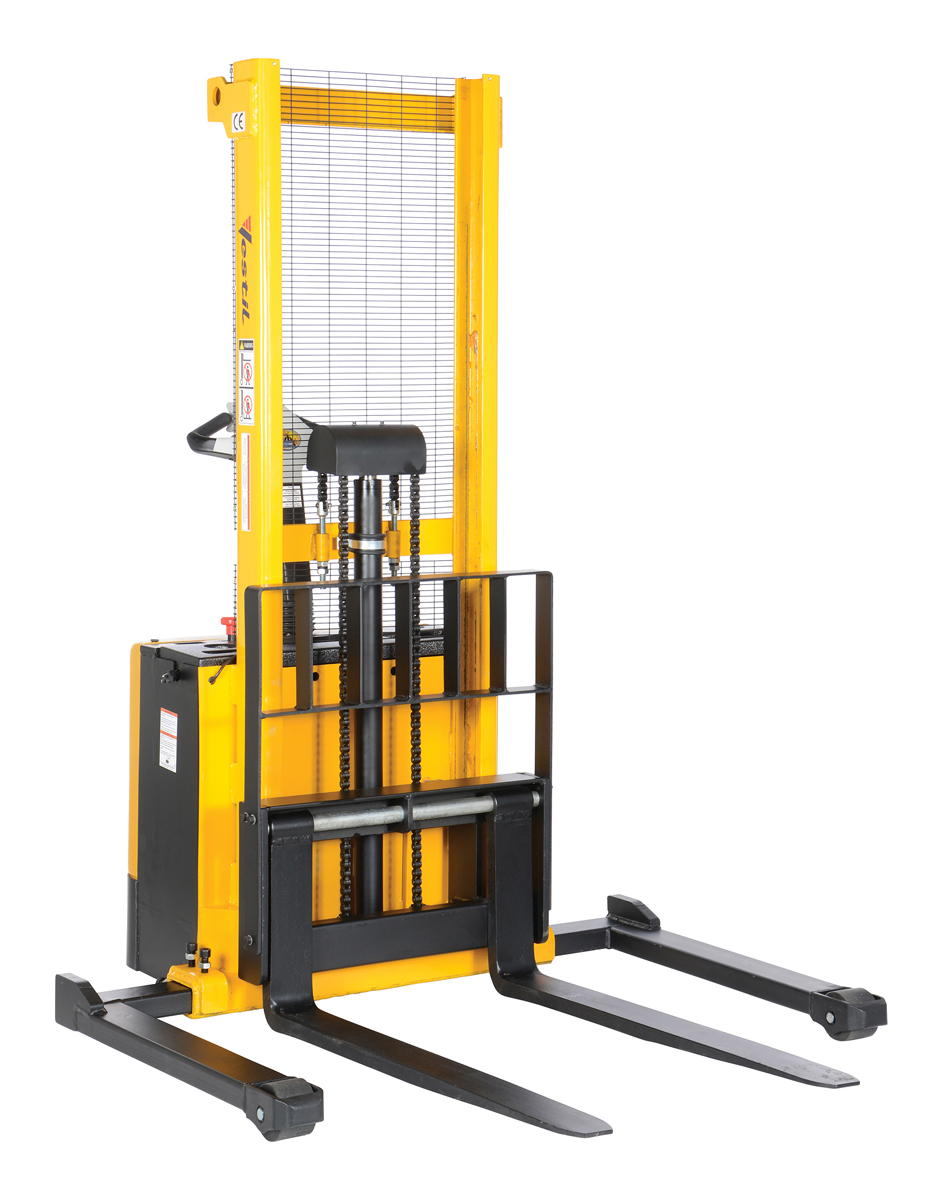

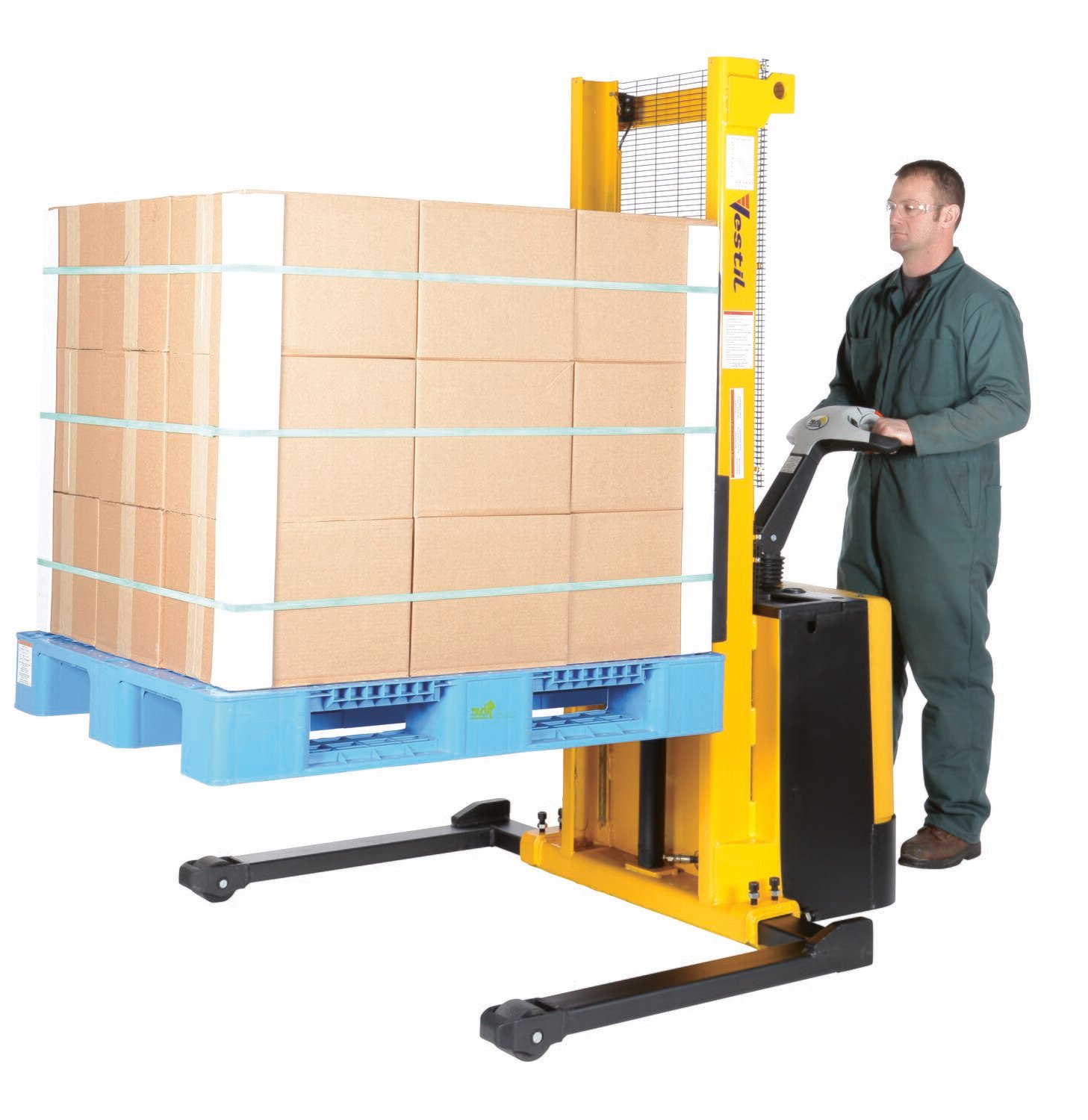

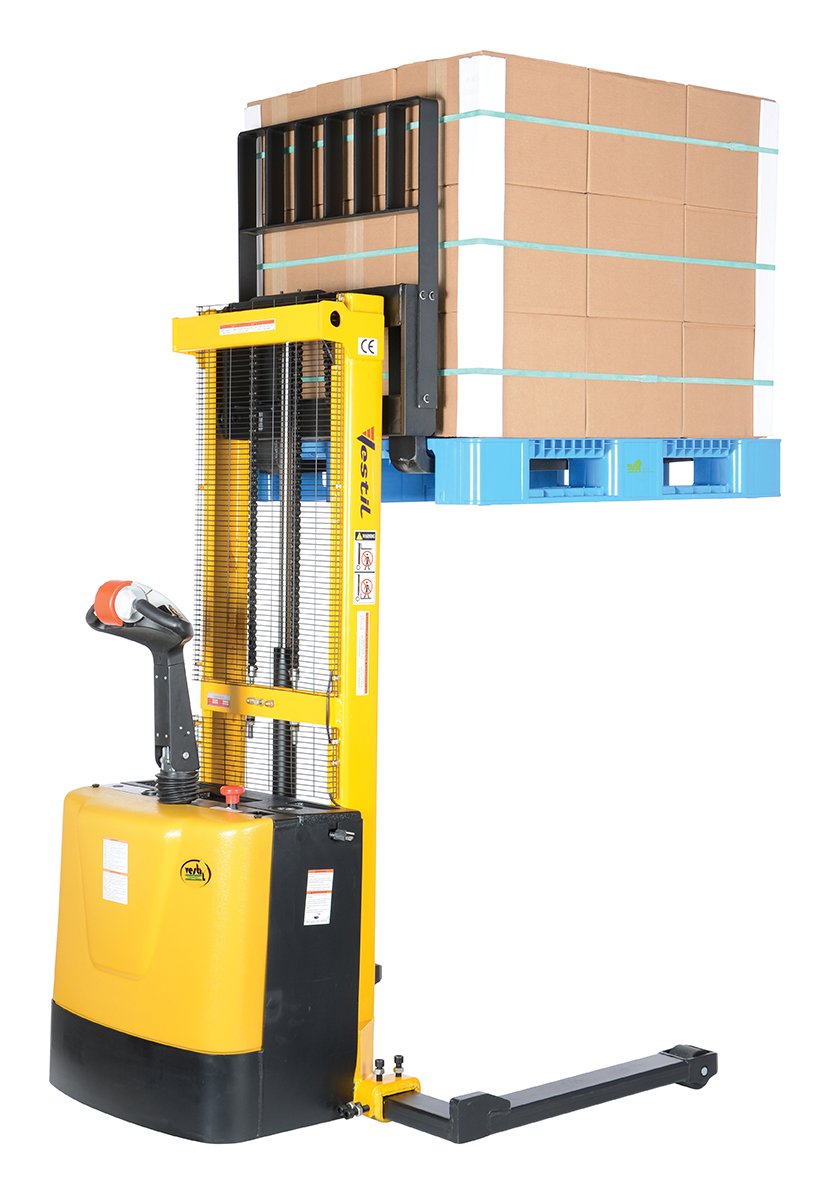

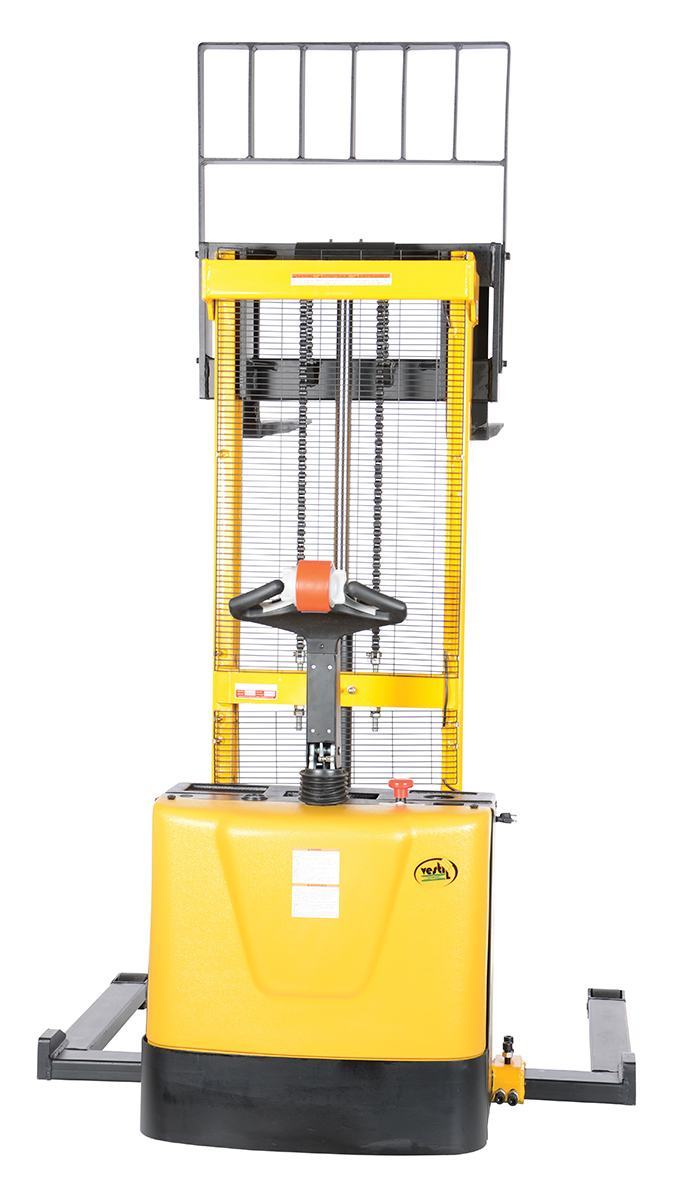

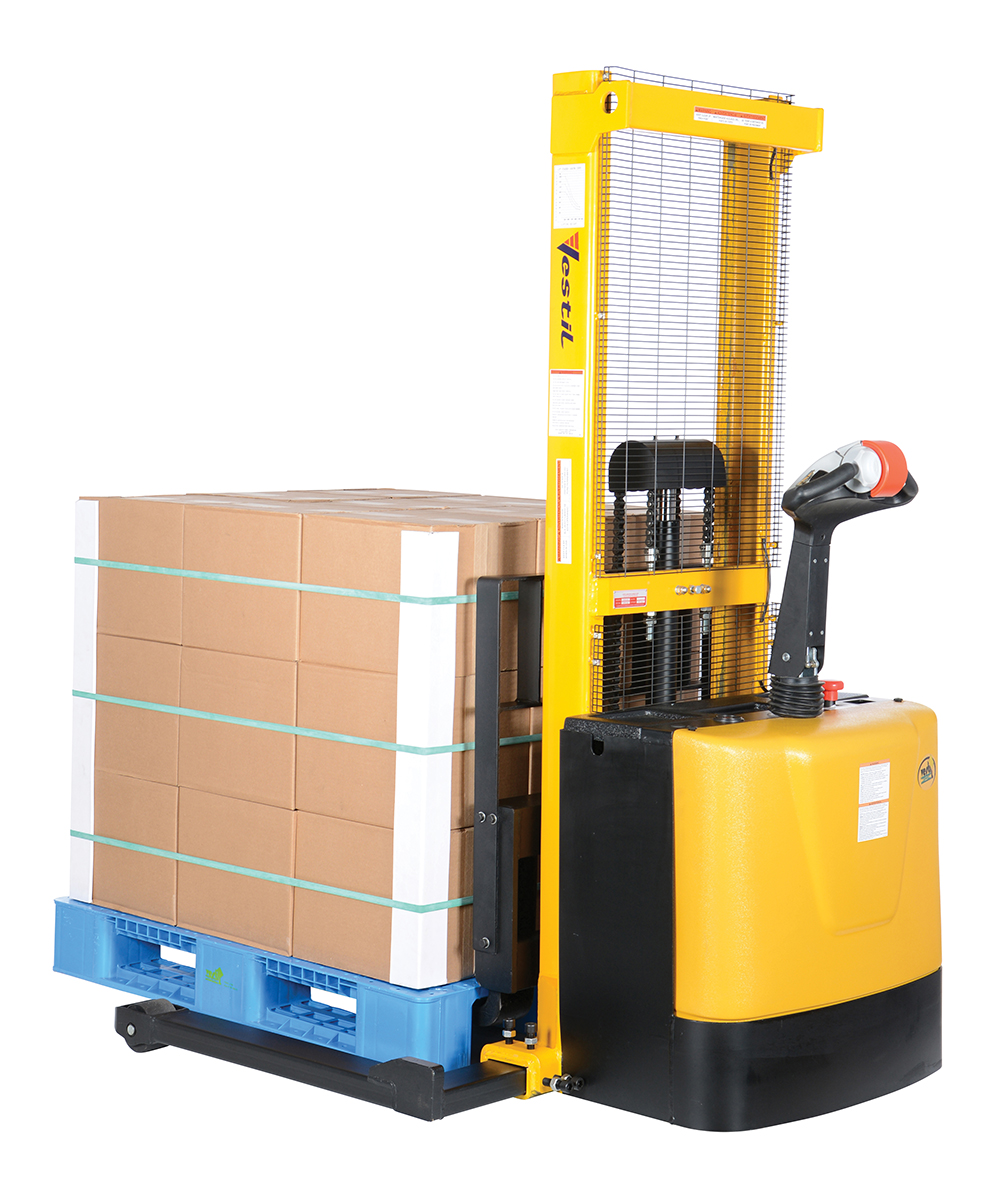

Stacker with Powered Drive and Powered Lift
/ ea.
Fork Size WxL
SPDPL-FA-62
Fork Size WxL - 26-3/4"x42"
Capacity 0"-62" Raised Height - 2,000 lbs.
Lowered Height - 2-1/2"
Raised Height - 62"
Net Weight - 970 #
Fork Size WxL
SPDPL-AA-62
Fork Size WxL - 8 to 26-3/4"x42"
Capacity 0"-62" Raised Height - 2,000 lbs.
Capacity 62"-118" Raised Height - -
Capacity 118"-150" Raised Height - -
Lowered Height - 2"
Raised Height - 62"
Net Weight - 990 #
SPDPL-AA-118
Fork Size WxL - 8 to 26-3/4"x42"
Capacity 0"-62" Raised Height - 2,000 lbs.
Capacity 62"-118" Raised Height - 1,500 lbs
Capacity 118"-150" Raised Height - -
Lowered Height - 2"
Raised Height - 118"
Net Weight - 1131 #
SPDPL-AA-150
Fork Size WxL - 8-3/8" to 26-3/4"x42-1/4"
Capacity 0"-62" Raised Height - 2,000 lbs.
Capacity 62"-118" Raised Height - 1,500 lbs
Capacity 118"-150" Raised Height - 1,000 lbs.
Lowered Height - 2-1/8"
Raised Height - 150"
Net Weight - 1290 #
Fork Size WxL
SPDPL-FF-62
Fork Size WxL - 26-3/4"x42"
Capacity 0"-62" Raised Height - 2,000 lbs.
Capacity 62"-118" Raised Height - -
Lowered Height - 3-3/8"
Raised Height - 62"
Net Weight - 950 #
SPDPL-FF-118
Fork Size WxL - 26-3/4"x42-1/4"
Capacity 0"-62" Raised Height - 2,000 lbs.
Capacity 62"-118" Raised Height - 1,500 lbs
Lowered Height - 3-3/8"
Raised Height - 118"
Net Weight - 1091 #
-
Product Details
- Fully Powered Electric Stacker
- Easily Transports Loads
- Includes Electromagnetic Disc Brake
- 24 VDV Drive and Lift Motor
- 12V,95 Ah lead acid deep cycle batteries, an integral battery charger, and battery level gauge
- Emergency Reverse Belly Switch reverses direction away from operator
- 3-4 hour Operation Fully Charged
- 8 Hour Charge When Used Intermittently
- .7 KW Drive and 2.0 KW Lift Motor
-
Product Videos
Browse All Products
Fixed Forks/Adjustable Support Legs
Adjustable Forks/Adjustable Support Legs
Fixed Forks/Fixed Support Legs (Works With Skids Only)
Fixed Forks/Adjustable Support Legs
| PRODUCT ID# | Fork Size WxL | Capacity 0"-62" Raised Height | Lowered Height | Raised Height | Net Weight | Price 1-3 | Price 4+ | QTY |
|---|---|---|---|---|---|---|---|---|
Adjustable Forks/Adjustable Support Legs
| PRODUCT ID# | Fork Size WxL | Capacity 0"-62" Raised Height | Capacity 62"-118" Raised Height | Capacity 118"-150" Raised Height | Lowered Height | Raised Height | Net Weight | Price 1-3 | Price 4+ | QTY |
|---|---|---|---|---|---|---|---|---|---|---|
Fixed Forks/Fixed Support Legs (Works With Skids Only)
| PRODUCT ID# | Fork Size WxL | Capacity 0"-62" Raised Height | Capacity 62"-118" Raised Height | Lowered Height | Raised Height | Net Weight | Price 1-3 | Price 4+ | QTY |
|---|---|---|---|---|---|---|---|---|---|
