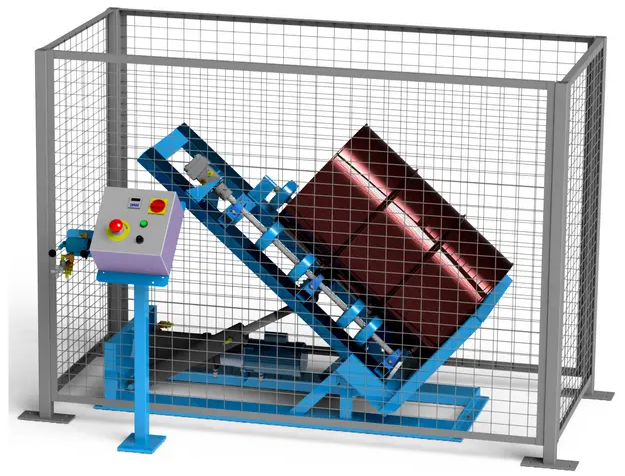

Power Tilt Drum Rollers

 / ea.
Phase
1
1
3
3
3
Air Motor-Includes Filter, Regulator, Lubricator, and Valve
1
1
3
3
3
PTDR-60230520
Phase - 1
Motor Style - 60 HZ
Voltage/Amp Draw - 230V/6.4
Explosion Proof? - No
Drum RPM - 5 to 20 RPM
PTDR-50220416CE
Phase - 1
Motor Style - 50 HZ
Voltage/Amp Draw - 220V/6.2
Explosion Proof? - No
Drum RPM - 4 to 16 RPM
PTDR-60460520
Phase - 3
Motor Style - 60 HZ
Voltage/Amp Draw - 460V/1.5
Explosion Proof? - No
Drum RPM - 5 to 20 RPM
PTDR-50400416CE
Phase - 3
Motor Style - 50 HZ
Voltage/Amp Draw - 400V/1.8
Explosion Proof? - No
Drum RPM - 4 to 16 RPM
PTDR-60575520
Phase - 3
Motor Style - 60 HZ
Voltage/Amp Draw - 575V/1.2
Explosion Proof? - No
Drum RPM - 5 to 20 RPM
PTDR-A520
Phase - Air Motor-Includes Filter, Regulator, Lubricator, and Valve
Motor Style - NA
Voltage/Amp Draw - NA
Explosion Proof? - No
Drum RPM - 5 to 20 RPM
PTDR-60230520Y
Phase - 1
Motor Style - 60 HZ
Voltage/Amp Draw - 230V/6.2
Explosion Proof? - Yes
Drum RPM - 5 to 20 RPM
PTDR-50220416Y
Phase - 1
Motor Style - 50 HZ
Voltage/Amp Draw - 220V/6.2
Explosion Proof? - Yes
Drum RPM - 4 to 16 RPM
PTDR-60460520Y
Phase - 3
Motor Style - 60 HZ
Voltage/Amp Draw - 460V/1.5
Explosion Proof? - Yes
Drum RPM - 5 to 20 RPM
PTDR-50400416Y
Phase - 3
Motor Style - 50 HZ
Voltage/Amp Draw - 400V/2.0
Explosion Proof? - Yes
Drum RPM - 4 to 16 RPM
PTDR-60575520Y
Phase - 3
Motor Style - 60 HZ
Voltage/Amp Draw - 575V/1.2
Explosion Proof? - Yes
Drum RPM - 5 to 20 RPM
  • Product Details
    • Mix contents of a closed drum without even opening it
    • Includes Guard Enclosure Kit and Control Package to meet OSHA

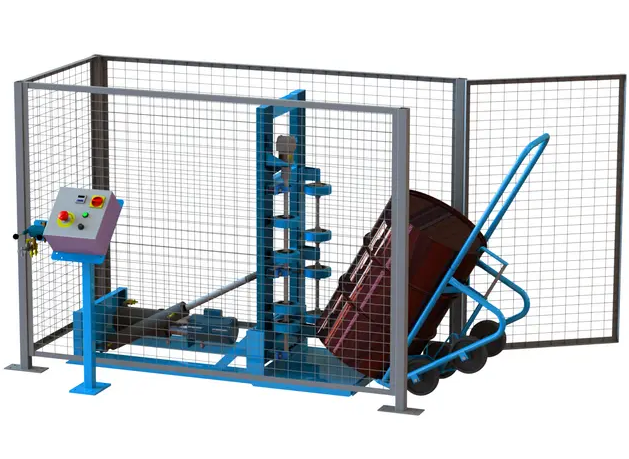

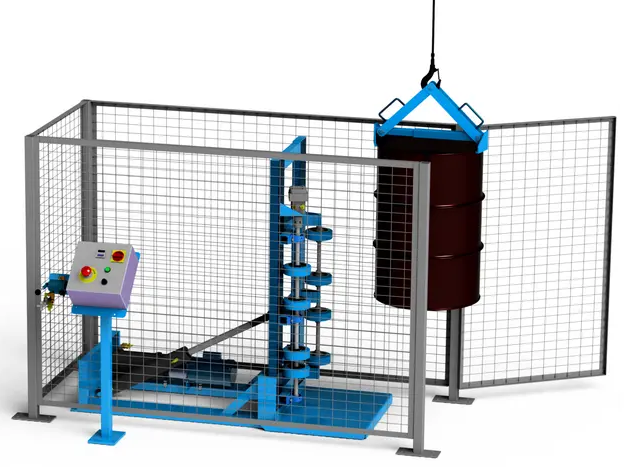

    • Easy to load by hand truck or hoist
    • Maximum Ambient operating temperature of 130 degrees Fahrenheit
  • Information

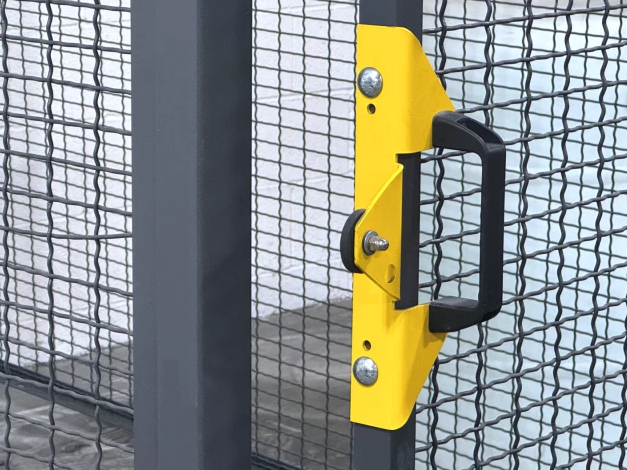

    The guard enclosure has a 3-foot wide door opening, and 3.25" space under gates and side panels. The outside post-to-post dimensions are 88" L X 40" W X 63.25" H.

  • Product Videos
Browse All Products
Power Tilt Drum Rollers
Power Tilt Drum Rollers
PRODUCT ID# PhaseMotor StyleVoltage/Amp DrawExplosion Proof?Drum RPM Price 1-3Price 4+ QTY
PTDR-60230520 160 HZ230V/6.4No5 to 20 RPM $13,405.66 $13,137.55
- +
Add +
PTDR-50220416CE 150 HZ220V/6.2No4 to 16 RPM $15,464.93 $15,155.63
- +
Add +
PTDR-60460520 360 HZ460V/1.5No5 to 20 RPM $13,759.03 $13,483.85
- +
Add +
PTDR-50400416CE 350 HZ400V/1.8No4 to 16 RPM $15,312.40 $15,006.15
- +
Add +
PTDR-60575520 360 HZ575V/1.2No5 to 20 RPM $13,734.88 $13,460.18
- +
Add +
PTDR-A520 Air Motor-Includes Filter, Regulator, Lubricator, and ValveNANANo5 to 20 RPM $11,717.55 $11,483.20
- +
Add +
PTDR-60230520Y 160 HZ230V/6.2Yes5 to 20 RPM $16,312.79 $15,986.53
- +
Add +
PTDR-50220416Y 150 HZ220V/6.2Yes4 to 16 RPM $17,060.24 $16,719.04
- +
Add +
PTDR-60460520Y 360 HZ460V/1.5Yes5 to 20 RPM $16,959.82 $16,620.62
- +
Add +
PTDR-50400416Y 350 HZ400V/2.0Yes4 to 16 RPM $17,478.45 $17,128.88
- +
Add +
PTDR-60575520Y 360 HZ575V/1.2Yes5 to 20 RPM $17,924.63 $17,566.14
- +
Add +
